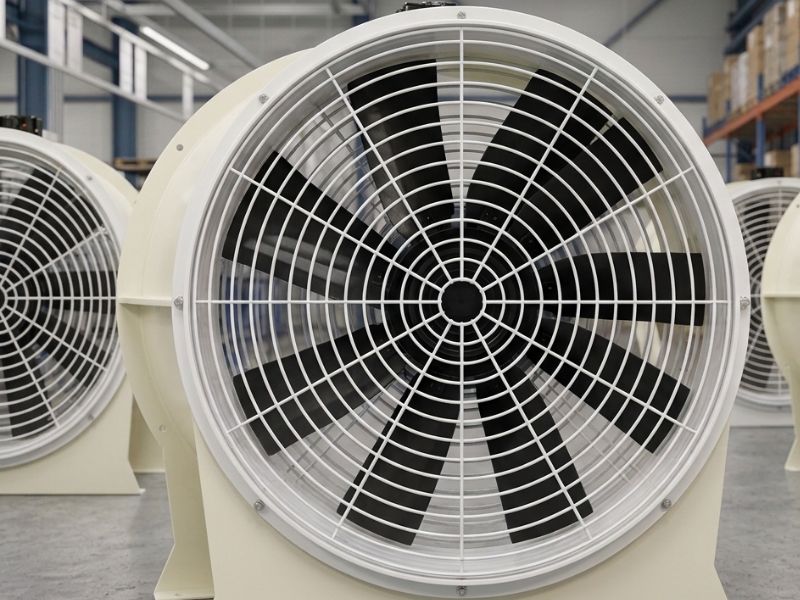

Tube Axial Exhaust Fan

High performance axial flow fans designed for effective ventilation, air circulation and heat extraction in industrial sheds, factories, warehouses and commercial spaces.

Features

HIGH AIR VOLUME: Delivers powerful airflow for maximum ventilation & cooling.
DURABLE CONSTRUCTION: Robust body with corrosion resistant finish for long lasting performance.
HIGH PERFORMANCE MOTOR: Equipped with strong and efficient motor for reliable continuous operation.
LOW MAINTENANCE: Simple design for easy installation, operation and maintenance.
OPTIONAL FILTER: 10 micron filter frame option for improved air quality.

SPECIFICATIONS

SIZE (Inch)	POWER (HP)	VOLTAGE / FREQUENCY	SPEED (RPM)	AIR VOLUME (CFM)	STATIC PRESSURE (Pa)	NOISE LEVEL (dB(A))	WEIGHT (Approx.)	DIMENSIONS (MM) L \| D \| F			MOUNTING	APPLICATION AREA (Approx.)
28	5 HP	415V / 50Hz	1350	18,000 – 20,000	85 – 120	≤ 75	75 Kg	900	660	40	Wall / Duct	250 – 350 m²
	3 HP	415V / 50Hz	1400	12,000 – 14,000	70 – 100	≤ 70	60 Kg	900	660	40	Wall / Duct	180 – 250 m²
	2 HP	415V / 50Hz	1450	8,000 – 9,500	55 – 80	≤ 65	50 Kg	900	660	40	Wall / Duct	120 – 180 m²
32	5 HP	415V / 50Hz	1450	25,000 – 28,000	90 – 130	≤ 75	95 Kg	1100	810	40	Wall / Duct	400 – 600 m²
	3 HP	415V / 50Hz	1450	16,000 – 18,000	70 – 110	≤ 70	75 Kg	1100	810	40	Wall / Duct	250 – 400 m²
	2 HP	415V / 50Hz	1450	11,000 – 12,500	55 – 85	≤ 65	60 Kg	1100	810	40	Wall / Duct	160 – 250 m²
36	5 HP	415V / 50Hz	1450	32,000 – 35,000	100 – 150	≤ 78	115 Kg	1250	915	40	Wall / Duct	600 – 800 m²
	3 HP	415V / 50Hz	1450	20,000 – 22,000	80 – 120	≤ 72	95 Kg	1250	915	40	Wall / Duct	350 – 550 m²
	2 HP	415V / 50Hz	1450	13,000 – 15,000	60 – 90	≤ 68	70 Kg	1250	915	40	Wall / Duct	200 – 350 m²

Detailed Engineering Overview: Tube Axial Flow Fans

Configurations & Power Options

5 HP: High Power | High Airflow
3 HP: Balanced Performance | Energy Efficient
2 HP: Reliable Operation | Low Power Consumption
OPTIONAL WITH 10 MICRON FILTER FRAME AXIAL FLOW FAN: Capacity Range: 2000 CFM to 50,000 CFM
AXIAL FLOW FAN: Capacity Range: 2000 CFM to 50,000 CFM

Operating Principle & Core Construction

Inline Flow Dynamics: Utilizes an aerodynamically balanced axial propeller housed within a heavy-gauge cylindrical casing, driving high-volume air parallel to the fan shaft.
Housing Build: Fabricated using corrosion-resistant coated mild steel or stainless steel to handle industrial continuous-duty environments.
Impeller Configuration: Features direct-drive or belt-driven aluminum alloy/steel blades designed to optimize volumetric airflow while keeping noise and static turbulence low.
