Air Handling Unit (AHU)

Engineering Advanced Air Conditioning & Environmental Control for Large Facilities

Advance Machines & Components Access Industries manufactures high-performance Air Handling Units (AHUs) designed to regulate, circulate, and condition air in large industrial and commercial environments. Engineered for continuous operation, our AHUs effectively manage indoor temperature, humidity, and air purity to maintain ideal working conditions and meet strict manufacturing standards.

Key Features & Benefits

  • High-Capacity Airflows: Engineered to move air volume ranging from 500 CFM up to 50,000 CFM depending on your plant requirements.

  • Modular & Custom Configuration: Available in horizontal and double-decker structural formats to suit floor space or ceiling clearance.

  • Superior Energy Efficiency: Designed with low-static-pressure internal paths and high-efficiency fan assemblies to optimize power consumption.

  • Effective Air Filtration: Integrated multi-stage filtration options to eliminate dust, particulate matter, and airborne contaminants.

  • Heavy-Duty Construction: Built using rigid, corrosion-resistant insulated panels for thermal efficiency and long operational life.

AHU – Technical Data Sheet

Parameter Horizontal AHU – Range 1 Horizontal AHU – Range 2 Double Decker AHU – Range 3 Double Decker AHU – Range 4
Airflow Capacity 5,000–25,000 CFM 25,001–50,000 CFM 50,001–75,000 CFM 75,001–1,00,000 CFM
AHU Configuration Horizontal Horizontal Double Decker Double Decker
Casing Type Double Skin Double Skin Double Skin Double Skin
Panel Thickness 25/30 mm 25/30 mm 25/30 mm 25/30 mm
Inner Skin GI / SS GI / SS GI / SS GI / SS
Outer Skin Pre-Painted GI / GI Pre-Painted GI / GI Pre-Painted GI / GI Pre-Painted GI / GI
Insulation PUF / Rockwool PUF / Rockwool PUF / Rockwool PUF / Rockwool
Insulation Density 40±5 kg/m³ 40±5 kg/m³ 40±5 kg/m³ 40±5 kg/m³
Fan Type Centrifugal / Plug Fan Centrifugal / Plug Fan Centrifugal / Plug Fan Centrifugal / Plug Fan
Fan Drive Belt / Direct Drive Belt / Direct Drive Belt / Direct Drive Belt / Direct Drive
Motor Efficiency IE3 / IE4 IE3 / IE4 IE3 / IE4 IE3 / IE4
Filter Section Pre / Fine Filter Pre / Fine Filter Pre / Fine Filter Pre / Fine Filter
Cooling Coil DX / Chilled Water DX / Chilled Water DX / Chilled Water DX / Chilled Water
Heating Coil Optional Optional Optional Optional
Fresh Air / Return Air Available Available Available Available
Damper GI / Aluminium GI / Aluminium GI / Aluminium GI / Aluminium
Drain Pan SS / GI SS / GI SS / GI SS / GI
Access Door Hinged / Removable Hinged / Removable Hinged / Removable Hinged / Removable
Controls DOL / VFD / BMS DOL / VFD / BMS DOL / VFD / BMS DOL / VFD / BMS
Application Commercial & Industrial Commercial & Industrial Large Industrial Large Industrial

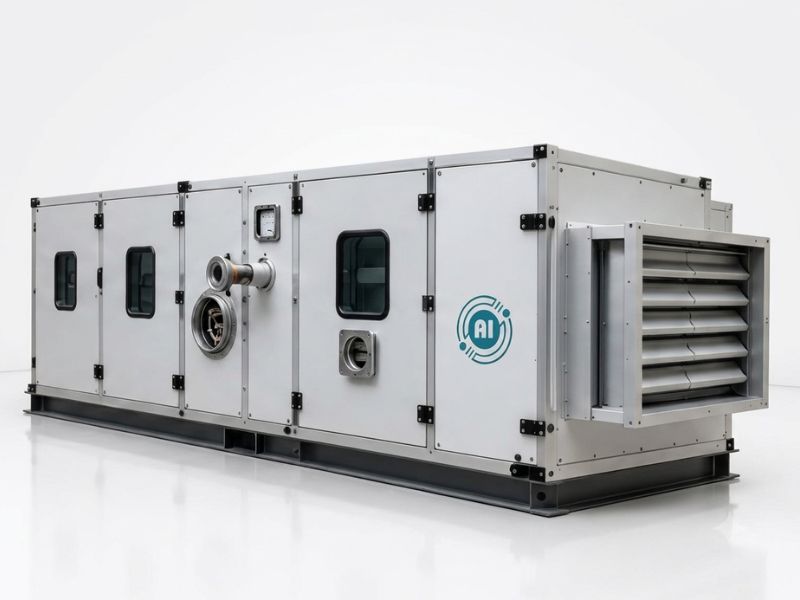

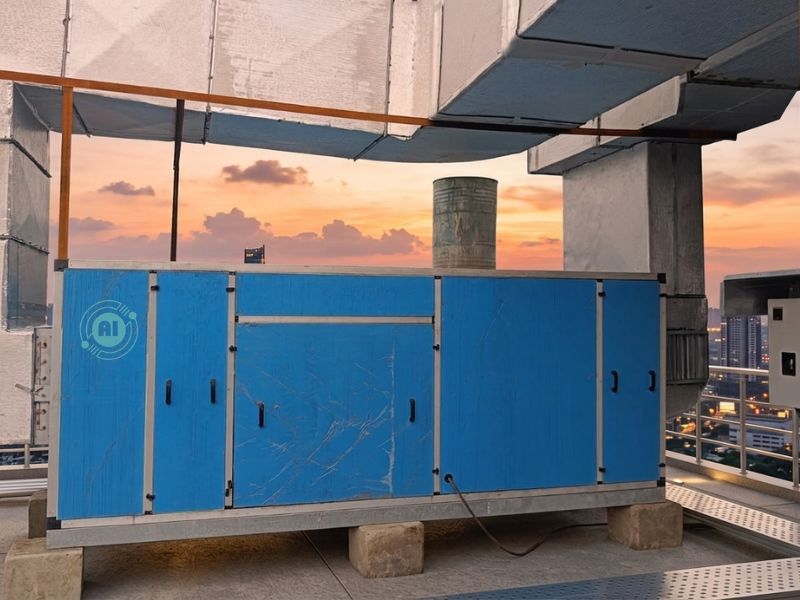

HORIZONTAL AIR HANDLING UNIT

FEATURES

  • Modular construction for easy installation & maintenance
  • High efficiency fans & motors for low power consumption
  • Wide range of air flow capacities from 500 to 20,000 CFM
  • Multiple filtration options (G4 to F9)
  • Cooling, Heating, Humidification & Dehumidification options
  • Powder coated / GI / SS construction
  • Custom built as per application requirement
TECHNICAL DATA SHEET
PARAMETER SPECIFICATION
Type Horizontal Air Handling Unit
CFM Range 5000 – 50,000 CFM
Air Flow Direction Horizontal
Configuration Single Skin / Double Skin
Casing GI / PPGI / Stainless Steel
Insulation 25 / 50 mm PUF (Density 40 kg/m³)
Fan Type Centrifugal (Forward / Backward Curve / Plug Fan)
Filter Section Pre Filter (G4) + Fine Filter (F7/F9 Optional)
Cooling Coil Copper Tube / Aluminium Fin
Heating Coil Copper Tube / Aluminium Fin / SS
Humidifier Steam / Ultrasonic (Optional)
Drain Pan SS 304 / GI Powder Coated
Motor IE2 / IE3 / IE4 Efficiency, 3 Phase, 415V, 50Hz
Control Microprocessor Based Control Panel
Application Commercial Buildings, Hospitals, Industries, Pharma, Clean Rooms, etc.
CFM RANGE & MODEL GUIDE
MODEL CFM RANGE
AIAHU 25 5000 – 25000
AIAHU 50 25001 – 50000

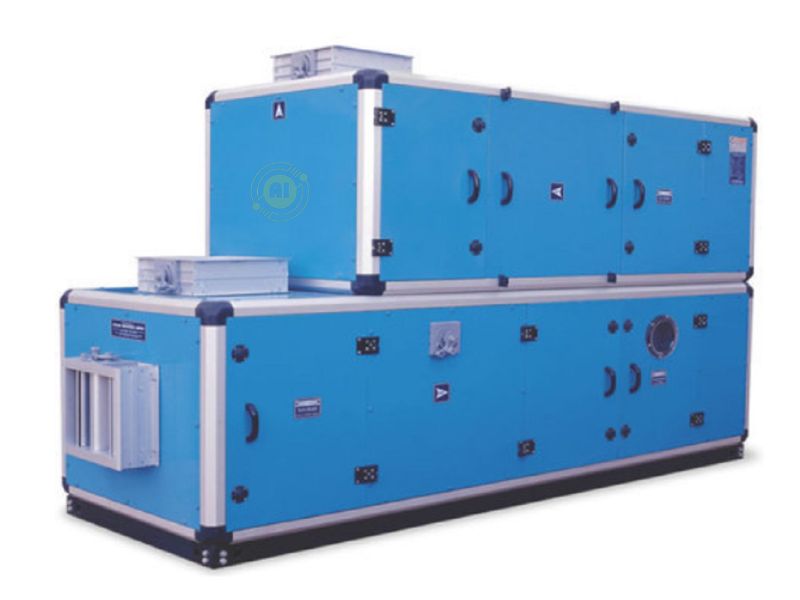

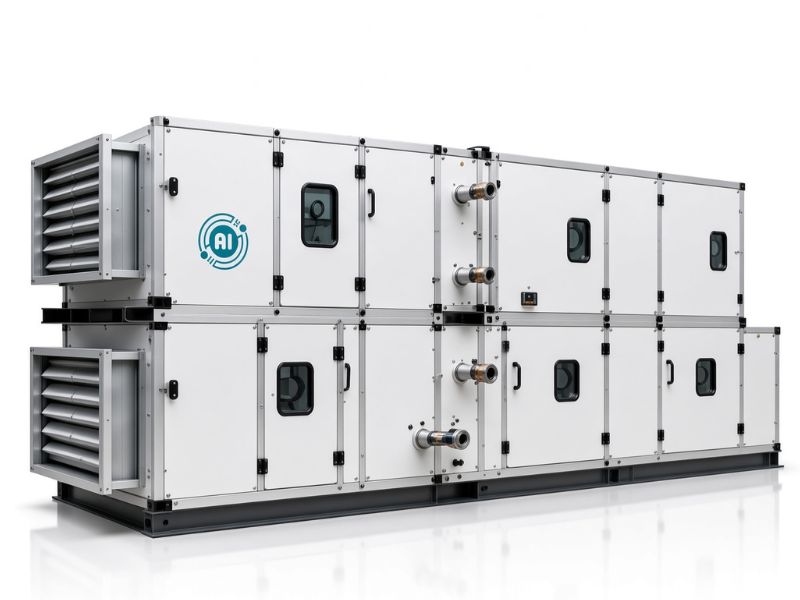

DOUBLE DECKER AIR HANDLING UNIT

FEATURES

  • Double deck arrangement for high capacity in compact size
  • Separate air paths for supply & return / different zones
  • High efficiency fans for consistent performance
  • Multiple filtration & coil options
  • Easy access doors for maintenance
  • Designed for hygiene & energy efficiency
  • Custom built as per project requirements
TECHNICAL DATA SHEET
PARAMETER SPECIFICATION
Type Double Decker Air Handling Unit
CFM Range 50000 – 100,000 CFM
Air Flow Direction Horizontal (Dual Level)
Configuration Double Skin
Casing GI / PPGI / Stainless Steel
Insulation 25 / 50 mm PUF (Density 40 kg/m³)
Fan Type Centrifugal (Forward / Backward Curve / Plug Fan)
Filter Section Pre Filter (G4) + Fine Filter (F7/F9 Optional)
Cooling Coil Copper Tube / Aluminium Fin
Heating Coil Copper Tube / Aluminium Fin / SS
Humidifier Steam / Ultrasonic (Optional)
Drain Pan SS 304 / GI Powder Coated
Motor IE2 / IE3 / IE4 Efficiency, 3 Phase, 415V, 50Hz
Control Microprocessor Based Control Panel
Application Large Commercial, Industries, Hospitals, IT Parks, Auditoriums, etc.
CFM Range & Model Guide
Model CFM Range
AIAHU 75000 50000 – 75000
AIAHU 100000 75001 – 100000

Why Choose Us

Engineering Expertise

Tailored industrial HVAC, cooling, and ventilation solutions backed by over 13 years of core industry experience.

Application-Specific Design

Every system is customized based on your facility’s layout, heat load, airflow dynamics, and operating conditions.

Energy-Conscious Approach

Engineered to maximize airflow and performance while reducing operational electricity costs.

Quality & Reliability

Built with heavy-duty components designed for continuous, long-term operation in harsh industrial environments.

Turnkey Execution

Complete end-to-end support—from initial site audit and technical design to supply, installation, commissioning, and after-sales service.
